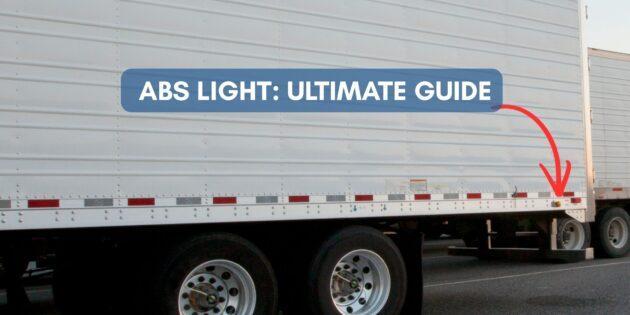

A trailer abs light on your dash is an urgent signal for fleet owners and safety managers, telling you a critical safety system is down. It’s a common headache, but one that can lead to violations and compromise safety if ignored. You know the drill: the driver calls in, you see the write-up on the DVIR, and you’re left wondering if this is a quick fix or a symptom of a bigger problem. This guide will walk you through what that light really means and give you a straightforward plan to diagnose the problem, stay compliant, and keep your fleet safe and on the road.
Why You Can’t Ignore the Trailer ABS Light
That steady amber light means your trailer’s anti-lock braking system is offline, removing a key defense against skidding and jackknifing. For you, this isn’t just a maintenance task; it’s a critical safety issue that demands immediate attention to protect your driver, your equipment, and your CSA score.
Many people assume that since the main service brakes still work, an ABS fault can wait until the next scheduled maintenance. This is a risky gamble. It overlooks the ABS system’s role in maintaining trailer stability, especially on wet roads or during an emergency stop. An active ABS fault is a clear signal that something in the system, from a small sensor to the main wiring harness, needs to be fixed now.
This guide will give you a step-by-step approach to understanding what that light really means. We’ll walk through how to diagnose and fix the issue while staying compliant with DOT regulations. The goal is to give you the knowledge to handle this common problem efficiently, cutting down on downtime and making your fleet safer.
Key Takeaways:
- An illuminated trailer ABS light means the anti-lock braking system is disabled.
- Your regular service brakes will still function, but you have lost a critical safety feature.
- Driving with the light on is a DOT violation that will negatively impact your CSA score.
- Immediate diagnosis and repair are necessary to ensure safety and compliance.
Understanding the Role of Your Trailer ABS
Your trailer’s ABS is a dedicated safety system designed to prevent wheel lock-up during hard braking, which is critical for preventing jackknifing and maintaining control. When the amber light is on, this automated protection is completely offline. The system runs constant self-checks, and the moment it detects a faulty component or unreliable data, it shuts itself down to prevent unpredictable braking behavior.
It’s important to remember that your tractor and trailer have separate ABS systems, each with its own warning light. The tractor’s ABS manages its wheels, while the trailer’s system is self-contained. This design ensures that a fault in one unit doesn’t compromise the function of the other.
How Your Trailer ABS System Works
When you hit the brakes hard, your trailer’s ABS works to keep your trailer stable and tracking straight behind you. It does this through three key players:
-
Wheel Speed Sensors: Mounted at the wheel hubs, these sensors constantly monitor how fast each wheel is spinning. They are the eyes of the operation, looking for any sign that a wheel is about to lock up.
-
Electronic Control Unit (ECU): The ECU is the system’s brain. It processes information from the wheel speed sensors. If it detects a wheel is slowing down too quickly and is about to lock, it immediately sends a command to the modulator valves.
-
Modulator Valves: These valves receive commands from the ECU. When a lock-up is detected, the ECU tells the modulator valve to rapidly pulse the air pressure to that specific brake. This is like pumping the brakes incredibly fast to prevent a lock-up while maintaining maximum braking power.
The adoption of antilock braking systems has been a major step forward for commercial vehicle safety. According to a statistical analysis by the NHTSA, ABS on the tractor unit reduces police-reported crashes in tractor-trailers by 3 percent.
When any one of these components has a problem, the ECU logs a fault code and turns on the trailer ABS light. To learn more about how this fits in with your foundation brakes, you can read our detailed guide on the air brake system.
Diagnosing Common Causes of an ABS Fault
When the trailer ABS light comes on, a systematic approach will help you find the problem quickly. Most faults are caused by a few common issues related to components exposed to the harsh road environment. Starting with the simplest and most likely culprits saves time and prevents unnecessary parts replacement.
This diagnostic cheat sheet will help you get right to the source of the fault.
Trailer ABS Fault Diagnosis Cheat Sheet
| Component | Common Symptoms | Diagnostic Steps | Typical Solution |
|---|---|---|---|
| Wheel Speed Sensor | Steady ABS light, sometimes intermittent. | Check for physical damage, grime buildup, and verify the air gap. Use a multimeter to test sensor resistance. | Clean the sensor tip and reinstall. Adjust the air gap. Replace the sensor if damaged or faulty. |
| Wiring Harness | Intermittent or flickering ABS light. Light may activate on bumps or turns. | Visually inspect the harness for chafing, cracks, or signs of rubbing. Check connectors for corrosion or loose pins. | Repair or replace the damaged wiring section. Clean and secure all connectors with dielectric grease. |
| 7-Way Connector | ABS light is on for one trailer but not others. Power-related fault codes. | Clean all pins on the tractor’s pigtail and trailer’s receptacle. Inspect for corrosion or bent pins. Test for consistent power. | Clean terminals thoroughly. Repair or replace the pigtail or trailer-side connector if damaged. |
| Modulator Valve | Persistent ABS light, possibly with brake dragging or poor performance. | Listen for air leaks around the valve. Use a diagnostic tool to activate the valve and confirm it’s cycling. Check for fault codes specific to the modulator. | Replace the faulty modulator valve. |
| ECU (Brain Box) | Solid ABS light that won’t clear. No communication with a diagnostic scanner. Multiple, unrelated fault codes. | Verify the ECU has solid power and ground connections. Attempt to pull blink codes. Rule out all other components first. | Replace the ECU after confirming it is the source of the failure. |
By following this order—sensors, wiring, then major components—you can diagnose most trailer ABS issues efficiently.
Check the Wheel Speed Sensors First
The most frequent cause of an active trailer ABS light is an issue with a wheel speed sensor. These sensors are mounted at the wheel hub, where they are exposed to water, road salt, dirt, and constant vibration, making them the system’s weakest link.
Common sensor problems include:
- Contamination: Buildup of grease, brake dust, or grime on the sensor’s magnetic tip can block it from getting a clean reading.
- Incorrect Air Gap: Road vibration can cause a sensor to back out slightly, increasing the air gap between it and the tone ring and weakening the signal.
- Physical Damage: Road debris can easily hit the sensor or its wire, causing damage.
Often, the fix is as simple as pulling the sensor, cleaning the tip, and reinstalling it securely, which can solve the problem with no cost for new parts.
Inspect the Wiring and Connectors
If the sensors are fine, your next step is to inspect the wiring harness. A flickering ABS light often indicates a wiring problem. The constant movement of the trailer’s suspension can cause wires to chafe against the frame, eventually wearing through the insulation.
Look closely for any signs of rubbing, cracks, or corrosion in the connectors, especially where the harness plugs into the ECU. A loose pin or a bit of corrosion is all it takes to disrupt the signal and trigger a fault. A faulty connection in the seven-way plug is another common culprit, so always check that the trailer’s ABS module is getting consistent power.
Evaluate the Modulator Valve and ECU
If you’ve ruled out sensors and wiring, it might be time to look at the ABS modulator valve or the ECU. The modulator valve controls air pressure to the brake chambers, and a failed valve can cause a persistent fault. While less common, the ECU, or the system’s “brain,” can also fail.
These parts are more expensive and time-consuming to replace, which is why they should be the last things on your diagnostic list. Using blink codes or a diagnostic scanner can confirm if the modulator or ECU is the problem, saving you from a costly replacement. Keeping your brake systems in top condition is always a smart move, especially when preparing for events like CVSA Brake Safety Week.
How the Trailer ABS Light Impacts DOT Compliance
An illuminated trailer ABS light is a clear signal to a DOT officer that your equipment may not be properly maintained, inviting violations, fines, and a negative mark on your fleet’s safety record.
From a regulatory standpoint, the Federal Motor Carrier Safety Administration (FMCSA) is clear: a functioning ABS is required on most commercial trailers. If the warning light indicates it’s not working, you are in violation. These violations directly impact your Compliance, Safety, Accountability (CSA) scores.
How an ABS Violation Affects Your CSA Score
An active trailer ABS light violation falls under the Vehicle Maintenance BASIC (Behavior Analysis and Safety Improvement Category). Each violation adds 4 severity points to your VM BASIC score, and a higher score increases the likelihood of future inspections and DOT audits.
The regulation, specifically 49 CFR § 393.55, mandates that the ABS malfunction indicator must work correctly. An inspector will check it during an inspection, and if the lamp is on, it’s an automatic violation. An ABS malfunction is one of the top 20 vehicle violations cited during inspections. While it won’t put you out of service on its own, it suggests a pattern of poor maintenance.
Pre-Trip and Post-Trip Inspections Are Your First Defense
The best way to prevent these violations is through diligent pre trip inspections (DVIRs). Train your drivers to check for the ABS lamp during their startup routine. It should light up and then go out. If it stays on, it must be written up on the DVIR and fixed before the trailer is dispatched.
Check out this quick video on how to conduct a great pre-trip inspection:
Catching these faults before a trip begins not only saves you from a fine but also keeps a violation off your record. A single ABS violation might not seem significant, but it can lead to further scrutiny if other issues are discovered. You can learn more about what gets trucks sidelined in our guide to the DOT out of service violations list.
Building a Proactive ABS Maintenance Program
The best way to handle a trailer ABS light is to prevent it from coming on in the first place. A proactive maintenance strategy is about keeping your trailers on the road, your drivers safe, and your operation running smoothly. Moving away from a “fix it when it breaks” approach is crucial for reducing downtime.
Instead of waiting for a driver to report an ABS fault, integrate specific ABS system checks into your regular preventive maintenance (PM) schedule. This allows you to catch potential issues like incorrect sensor gaps or early signs of wire chafing before they trigger a warning light.
Key Elements of a Proactive Program
A solid program requires a clear process that everyone, from drivers to technicians, understands and follows. The goal is to create a seamless workflow from fault identification to repair documentation.
Your proactive program should include:
- Standardized PM Checks: Add ABS-specific tasks to your PM checklist, such as inspecting wheel speed sensors for damage, confirming the correct air gap, and checking the wiring harness for chafing or corrosion.
- Clear Driver Reporting: Train your drivers to note if the ABS light was intermittent on their DVIR. This detail can save technicians significant time when diagnosing a tricky wiring issue.
- Ongoing Technician Training: Ensure your maintenance team is trained to read blink codes and use modern diagnostic scanners. Proper training reduces diagnostic time and prevents unnecessary parts replacement.
Finally, meticulous record-keeping is essential. Every inspection, diagnostic step, and repair must be documented in the trailer’s maintenance file. This builds a complete service history and provides proof of compliance during a DOT audit. You can find detailed guidance in our article on the DOT vehicle maintenance file checklist.
Frequently Asked Questions About the Trailer ABS Light
Here are direct answers to common questions about the trailer ABS light, designed to help you manage safety, compliance, and operations effectively.
Is it a violation to drive with the trailer ABS light on?
Yes. Operating a commercial vehicle with an illuminated trailer ABS light is a violation of federal regulation 49 CFR § 393.55. It will be cited during a roadside inspection and will add points to your fleet’s CSA score in the Vehicle Maintenance BASIC.
What is the most common cause of a trailer ABS fault?
The most frequent cause is a faulty wheel speed sensor or its associated wiring. These components are located at the wheel end and are highly susceptible to damage from road debris, water, salt, and corrosion, which can disrupt the signal to the ABS control module.
Will my trailer brakes fail if the ABS light is on?
No, your standard service brakes will still function. The trailer ABS light indicates that the anti-lock function is disabled, not that the foundation brakes have failed. However, the risk of wheel lock-up during hard braking is significantly increased, which can lead to a loss of control or jackknifing.
Can you manually reset a trailer ABS light?
No, there is no manual reset for the trailer ABS light. The system performs a self-check each time the vehicle starts. Once the underlying electrical or mechanical fault has been properly repaired, the light will turn off automatically. If the light remains on after a repair, the root cause has not been resolved.
Is a trailer ABS light an out-of-service violation?
No, an illuminated trailer ABS light is not an out-of-service (OOS) violation on its own. It is a vehicle maintenance violation that will be recorded on an inspection report. While it won’t sideline your truck immediately, a pattern of such violations can trigger increased DOT scrutiny and potential audits.
How much does it cost to fix a trailer ABS light?
The cost can vary widely. If the issue is a dirty wheel speed sensor, the fix may only cost labor time. A damaged sensor or wiring section could cost a few hundred dollars. However, if the ABS modulator or ECU needs to be replaced, the cost can exceed $1,000 for parts and labor.
Why is my trailer ABS light blinking?
A blinking or flashing trailer ABS light, often called a “blink code,” is a diagnostic feature on many systems. The sequence of flashes corresponds to a specific fault code stored in the ECU. Technicians can interpret these codes to quickly identify the problem area, such as a specific sensor or valve.
Regulatory References
Staying compliant means knowing the rules. Here are the key Federal Motor Carrier Safety Regulations (FMCSRs) related to your trailer’s anti-lock braking system. Every fleet manager should be familiar with these and have them readily accessible.
- 49 CFR § 393.55 – Antilock brake systems: This is the primary regulation that mandates ABS on most commercial vehicles. It specifies the requirements for the system and the function of the malfunction indicator lamp.
- 49 CFR § 396.11 – Driver vehicle inspection report(s): This rule outlines the driver’s responsibility to identify and report any defects, including an illuminated ABS warning light, during their pre-trip and post-trip inspections.
- Appendix A to Part 396 – Minimum Periodic Inspection Standards: This appendix requires that the ABS system and its malfunction indicator lamp be inspected as part of the mandatory annual vehicle inspection.
