An ABS light violation on a trailer is a pain you know all too well, signaling immediate risk to your CSA scores and bottom line. As a fleet owner or safety manager, you're constantly fighting to keep your equipment compliant and on the road, and that little amber light is a major headache. You've probably seen drivers note it on a DVIR, only for it to get pushed to the back burner. Maybe you've even had that dreaded call from a driver stuck at a weigh station with an inspector pointing it out. This common oversight can lead to fines, out-of-service orders, and a cascade of negative effects on your safety rating. This guide will break down exactly what's happening when that light comes on, how to handle it, and how you can build a system to prevent it from happening again.
The True Cost of an Illuminated Trailer ABS Light
You've seen it. Maybe a driver noted it on a pre-trip, or worse, you got the call from a driver at a scale house. It's so easy to write it off as a minor fix for your shop to handle "later."
But kicking that can down the road is a costly mistake. An active ABS light is a direct invitation for fines, out-of-service orders, and even a spike in your insurance premiums. Let's break down exactly what the rules are and what you can do to get ahead of this common violation.
Understanding the DOT Violation and CSA Impact
When you operate a commercial vehicle with that trailer ABS light lit up, you are in direct violation of federal regulation 49 CFR § 393.55. This rule is simple: the ABS malfunction light has to work correctly, and the system itself needs to be fully operational on most commercial trailers built after March 1, 1998.
When an inspector spots that light during a Level 1 inspection, it's an automatic vehicle maintenance violation. This isn't a small thing. It adds exactly 4 severity points to your fleet's Vehicle Maintenance BASIC score.
Those points add up fast, making you a bigger target for future DOT audits and more frequent inspections. The financial pain isn't just the ticket; it's the long-term damage to your safety rating, which can be expensive and time-consuming to fix. You can read our guide on what goes into the cost to fix a conditional safety rating.
The real cost isn't just the fine for the ABS light violation itself. It's the ripple effect on your CSA score, insurance rates, and the increased chance of being pulled in for more inspections down the road.
To get a full picture of the financial risk, it helps to understand what your insurance does and doesn't cover. This excellent commercial auto guide for Miami businesses offers great insights into how vehicle maintenance issues can impact your policy and premiums.
A Practical Guide to Troubleshooting Trailer ABS Faults
When that trailer ABS light comes on, it’s easy to see dollar signs and downtime flashing in your head. But don't just start throwing parts at the problem. A logical troubleshooting plan is the key to getting your technicians to the root cause quickly, starting with the most common culprits and working your way to the less obvious ones.
The diagnostic process should almost always begin where the tractor meets the trailer. This connection is a notorious high-failure area and is frequently the source of an ABS light violation on a trailer.
Start at the Tractor-Trailer Connection
First things first: get your hands on the 7-way connector and the main power cord. A thorough inspection here is crucial. Look for the tell-tale signs of trouble like green corrosion on the pins, any physical damage to the plug itself, or connections that feel loose. A bad connection at this point can cut power to the trailer's ABS system and trigger that warning light instantly.
A quick wiggle test on the 7-way plug can be surprisingly effective. If the light flickers or shuts off when you move the cord, you’ve probably found the problem area.
Ignoring an ABS light can snowball into much bigger issues for your fleet, moving from a simple warning to serious compliance and financial penalties. This is why immediate troubleshooting is so important.
Trailer ABS Troubleshooting Priority List
To make diagnostics more efficient, you should follow a prioritized checklist. This approach helps you rule out the simple, common issues first before diving into more complex and costly component replacements.
| Priority | Component to Check | What to Look For |
|---|---|---|
| 1 | 7-Way Connector & Power Cord | Green corrosion on pins, bent pins, physical damage to the plug, loose connection. |
| 2 | Wheel Speed Sensor Wiring | Chafing, cuts, pinch points, or corrosion from the sensor back to the main harness. |
| 3 | Wheel Speed Sensors | Physical damage from road debris, improper mounting, incorrect air gap. |
| 4 | Tone Rings | Buildup of grease or debris, missing teeth, physical damage. |
| 5 | ABS Modulator Valve & ECU | Check for power and ground at the ECU, test valve solenoids (often requires diagnostic tool). |
Working through the list in this order saves time and prevents you from replacing a perfectly good ECU when the real problem was just a corroded pin on the pigtail.
Inspecting Wheel-End Components
If the 7-way connection is clean and solid, your next stop is the wheel ends. Wheel speed sensors and their wiring live in a harsh environment, constantly exposed to water, debris, and vibration, which makes them a very common source of ABS faults.
Here’s what your technicians should be zeroing in on:
- Wheel Speed Sensors: Check for any physical damage from kicked-up road debris. Make sure the sensor is mounted securely and has the correct air gap between it and the tone ring.
- Sensor Wiring: Carefully trace the wiring harness from the sensor back toward the main loom. You're looking for any signs of chafing, cuts, or pinch points where a wire could be shorting out.
- Tone Rings: The tone rings (or exciter rings) need to be clean and free of thick grease or packed-in debris. A contaminated or damaged ring can send a messy, erratic signal that the ABS computer can't read.
If you've checked these common failure points and are still scratching your head, it’s time to move on to testing the ABS modulator valve and the trailer's electronic control unit (ECU). These components don't fail as often, but they absolutely must be part of a complete diagnostic process. For a more detailed breakdown of related inspections, take a look at our semi-truck brake inspection checklist.
Managing a Roadside ABS Violation and Corrective Action
Getting pulled over for a roadside inspection and having a trailer ABS light violation is a major headache. An officer seeing that light on almost always leads to a deeper, Level 1 inspection. If they confirm the ABS system is malfunctioning, that violation goes straight onto the driver’s Personal Safety Profile (PSP) and adds points to your company's CSA score.
The hit to your wallet can be immediate. Fines for this violation can be over $130.00. But the bigger problem is the 4 severity points that get added to your Vehicle Maintenance BASIC score. That kind of ding can drive up your insurance premiums and put you on the DOT's radar for more frequent inspections.
Taking Corrective Action After a Violation
Once you get that violation, the clock is ticking. You have to get the problem fixed and, just as importantly, you have to document it correctly. First things first, get that trailer into a shop. You can't just ignore it; a repeat offense is going to bring much harsher penalties, and you could even get an Out-of-Service (OOS) order.
Your repair order needs to be crystal clear. Simply writing "fixed ABS light" won't cut it. The invoice has to include specific details:
- Your company name and USDOT number
- The date and location where the repair was done
- The vehicle and trailer unit numbers
- A specific description of what was wrong (e.g., "defective wheel speed sensor on axle 2")
- A clear summary of the fix (e.g., "replaced sensor and verified light is now off")
This detailed repair record is your proof of compliance. It’s the key piece of evidence you will need to challenge the violation and get it removed from your safety record.
With the repair done and a proper invoice in hand, your next move is to submit a Request for Data Review (RDR) through the FMCSA's DataQs system. This is the official process for asking the FMCSA to remove the violation from your CSA score by showing you took the right corrective action. For a full walkthrough, check out our guide on how to submit a corrective action plan to the FMCSA.
How to Prevent Future ABS Violations in Your Fleet
The best way to deal with an ABS light violation is to make sure it never happens in the first place. This means getting out of a reactive mindset and building a proactive strategy that hinges on solid maintenance routines and driver buy-in.
It all starts by making comprehensive ABS system checks a non-negotiable part of your regular preventative maintenance (PM) schedule. Your technicians can't just glance at the light and call it good. During every single PM service, they need to be actively inspecting the wheel speed sensors, all the wiring, and the 7-way connector. This turns a routine check-up into a powerful tool for catching small issues before they become big violations.
Empower Your Drivers Through Training
Your drivers are your first line of defense out on the road, so giving them the right knowledge is critical. The scale of this problem is bigger than many fleets realize. Studies have shown that roughly one in three trailers built after March 1998 are running with a faulty ABS. It gets worse. One major carrier found that half of its 1,000-trailer fleet had an active ABS light on.
Your driver training needs to cover two key areas:
- Thorough Inspections: Show your drivers exactly how to check the trailer ABS light during their pre-trip and post-trip inspections. They must understand the correct sequence: the lamp has to cycle on and then go off. If it stays on or doesn't light up at all, that's a problem.
- Immediate Reporting: You need a clear, no-fault process for drivers to report an illuminated ABS light right away. When drivers know they won't get chewed out for reporting a maintenance issue, they're far more likely to speak up.
Fostering a culture of proactive communication transforms every driver into a safety advocate. This simple shift in mindset can dramatically cut your risk of getting hit with a completely preventable violation.
When you combine disciplined PMs with well-trained, engaged drivers, you’ll see a significant drop in violations and a big improvement in your fleet's overall safety. For more in-depth strategies, take a look at our guide on how to prevent brake violations on roadside inspections.
Taking Control of Your Fleet Compliance and Maintenance
Let’s be honest. Juggling maintenance records, driver files, and CSA scores is a constant headache. An ABS light violation on a trailer isn't just a one-off problem; it's often a symptom of bigger cracks in your maintenance and compliance systems. If you're still chasing paper records or fighting with messy spreadsheets, you're working way harder than you need to be.
An illuminated ABS light is a red flag that can cascade into bigger issues, affecting your CSA scores and even your insurance rates. Speaking of which, you'll want to make sure your coverage is solid. This handy guide to commercial auto trailer coverage is a great resource for understanding your fleet's financial liability.
A Better Way to Manage It All
Imagine having all your fleet’s critical data in one place, a real-time dashboard showing you exactly where you stand. Think of every PM service, every driver qualification file, and every repair record (like that ABS fix we just walked through) all neatly organized and ready for an audit at a moment's notice.
We built our system to provide the tools for continuous monitoring and effortless recordkeeping, so you can stop reacting to violations and start preventing them.
This is where a system like My Safety Manager comes in. It's designed to automate these tedious but critical tasks. We help you take the guesswork out of DOT compliance, giving you more time to focus on what really matters: running a safe and profitable fleet.
See how we can help by learning more about our fleet management software for trucking.
Frequently Asked Questions About Trailer ABS Violations
Is an illuminated trailer ABS light a DOT violation?
Yes, an illuminated trailer ABS light is a violation of 49 CFR § 393.55. During a roadside inspection, this will result in 4 severity points being added to your Vehicle Maintenance BASIC score, which negatively impacts your overall CSA score.
Can you get a ticket for a trailer ABS light?
Yes, a law enforcement officer can issue a citation and fine for an active trailer ABS light violation. Fines can exceed $130 per occurrence, in addition to the points added to your CSA score.
What is the DOT regulation for trailer ABS?
The primary regulation is 49 CFR § 393.55, which mandates that most commercial trailers manufactured after March 1, 1998, must be equipped with a functional antilock brake system. This includes a working malfunction indicator lamp that performs a self-check at startup.
Is an ABS light an out-of-service violation?
Typically, no. An illuminated ABS light on its own is a serious violation but usually does not result in an Out-of-Service (OOS) order. However, if the inspector finds it in combination with other brake-related defects, it could contribute to an OOS determination.
How do you check a trailer ABS light on a pre-trip inspection?

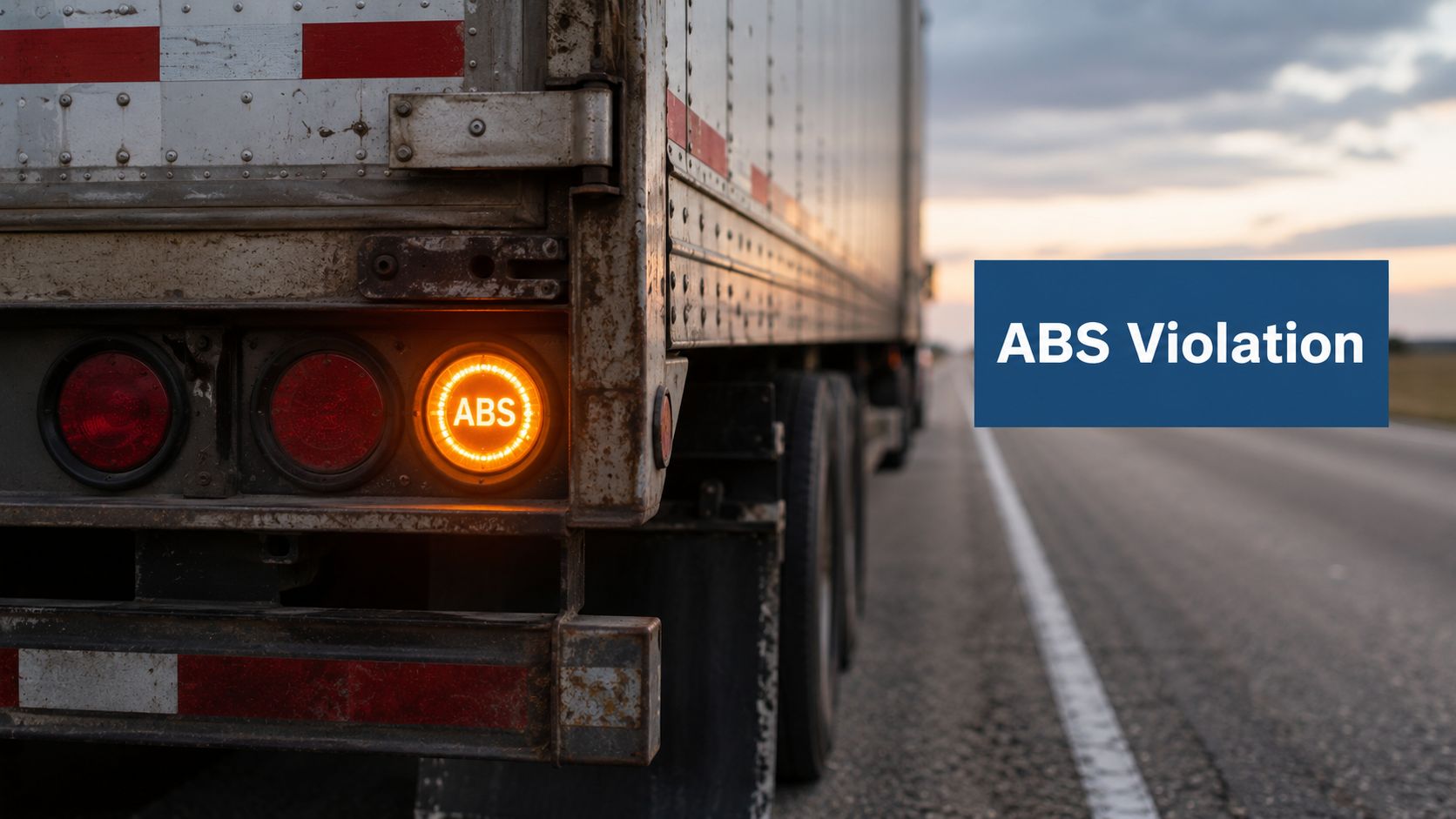

During your pre-trip inspection, you should apply power to the trailer and observe the amber ABS lamp, usually located on the driver's side near the rear. The lamp must illuminate for a few seconds and then go out. If it stays on, or if it never comes on at all, it's a defect that you must report.
Is it safe to drive with the trailer ABS light on?
While your regular service brakes will still function, the anti-lock feature will not. This compromises vehicle control during hard braking, especially on slick surfaces, and significantly increases the risk of a jackknife incident. It is a safety and compliance failure that needs immediate attention.
What are the most common causes of a trailer ABS light?
The most common issues are found at the 7-way tractor-to-trailer connection (corrosion, bent pins), followed by damaged wheel speed sensor wiring, faulty wheel speed sensors, and debris on the tone rings.
Regulatory References
- 49 CFR § 393.55 – Antilock brake systems: This is the core regulation that mandates which vehicles need ABS and requires the malfunction indicator lamp to be fully operational.
- 49 CFR § 396.3 – Inspection, repair, and maintenance: This rule requires that all parts and accessories, including the ABS, must be in safe and proper operating condition at all times, making proactive ABS maintenance a requirement.
